[複習]AssembleSIC和AssembleXE

AssembleSIC和AssembleSIC/XE版本差別

多四個暫存器，圖1

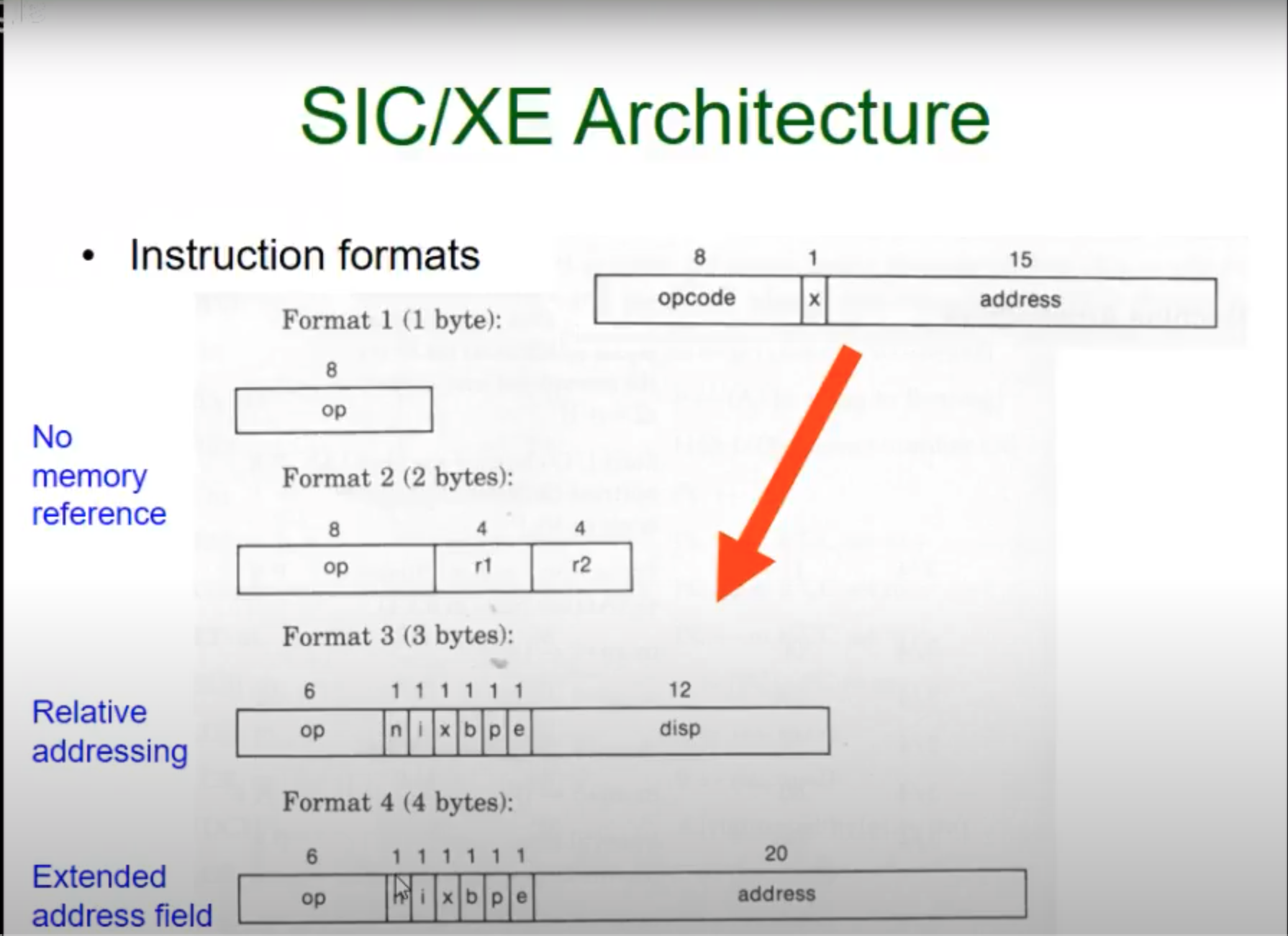

從一個指令格式變成四個指令格式，圖2

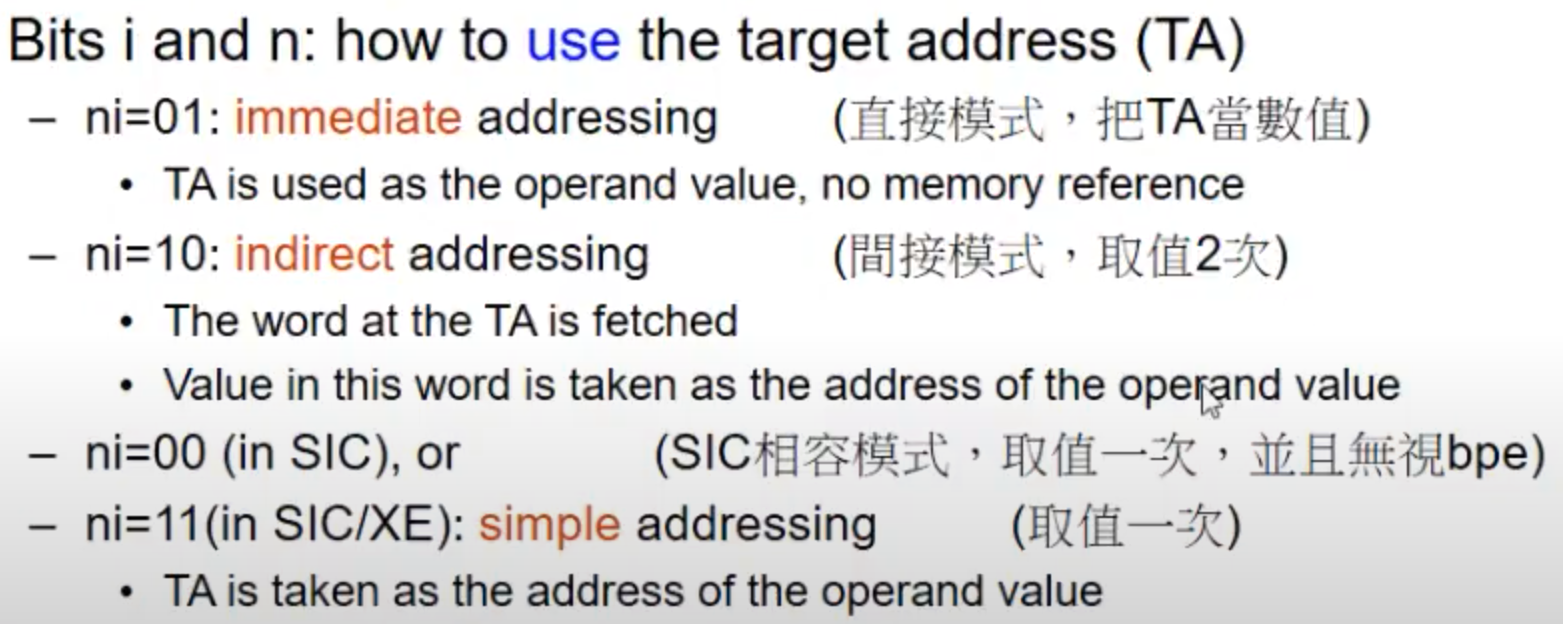

取值模式ni，圖3
ni 10跟01不存在x

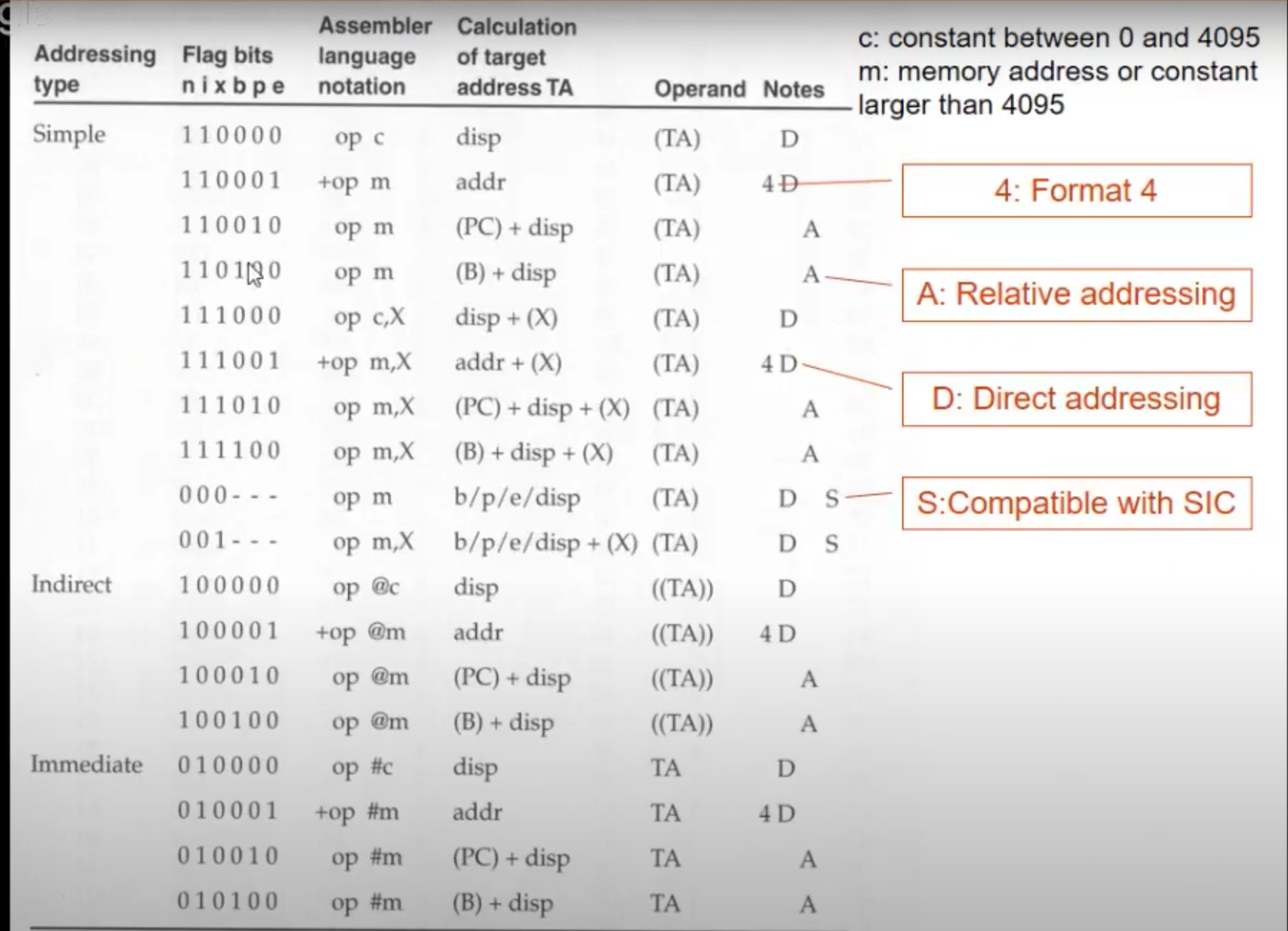

pc、b、e任兩個不會同時為1，在ni不是11時，反之是11時，可與x同時存在。圖4

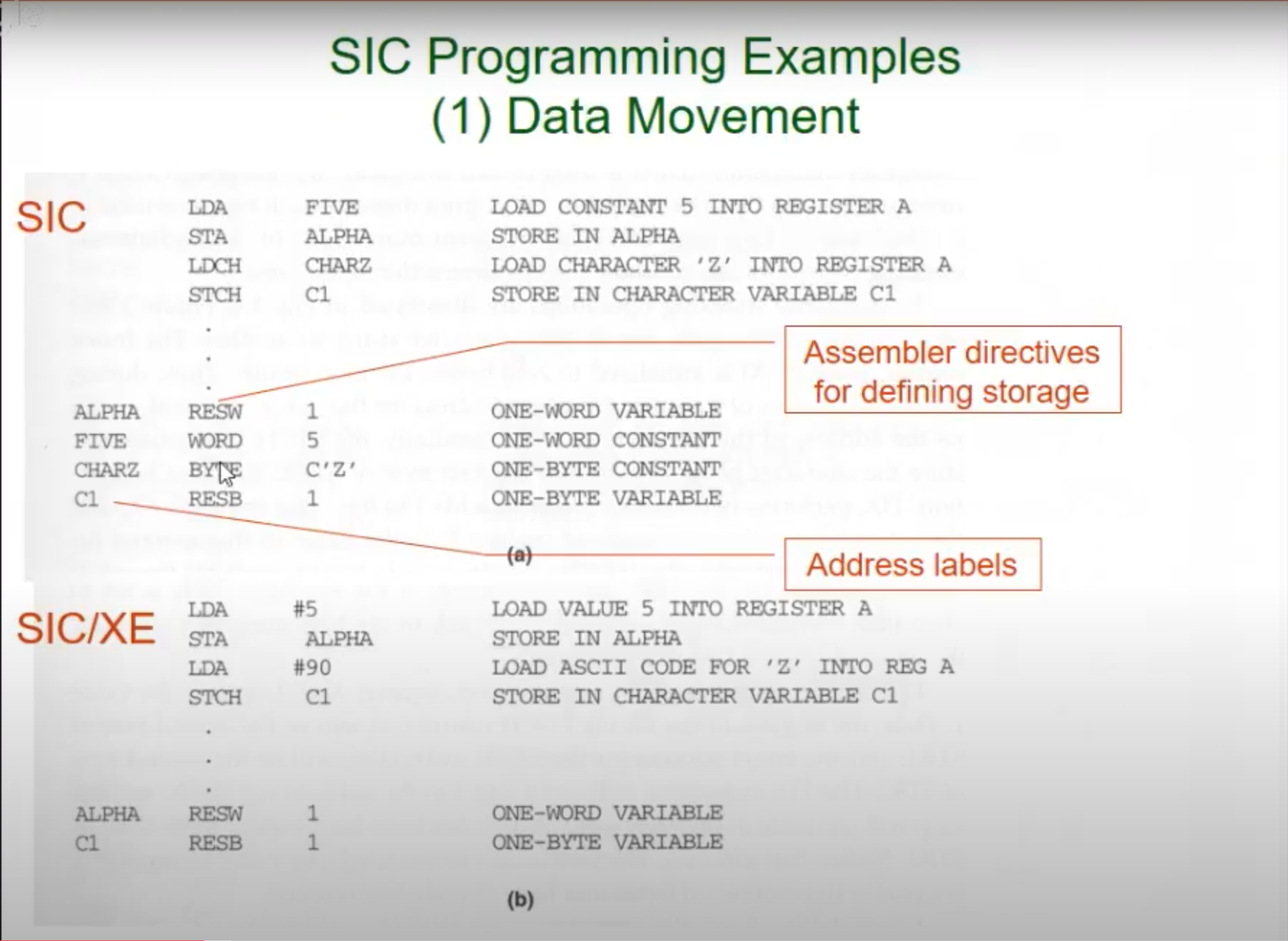

SIC版本所有數字都要宣告，反之圖5

詳細請參閱教學

AssembleSIC

主程式

Github

Step1:製作編碼對應表

Step2:將對應位置Label、operationCode、operand存入變數中

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28


while(getline(input,str)){
    flag=0;
    if(str==" "||str[0]=='.'){
        continue;
    }
    flag=0;
    int a  = str.length();
    if(searchMarker(str,0)<=str.length()){
        lable[i] = str.substr(0,7);//(position,lenght)
    }if((flag!=1) && (searchMarker(str,8)<=str.length())){
        operationCode[i] = str.substr(8,8);
    }if((flag!=1) && (searchMarker(str,16)<=str.length())){
        operand[i] = str.substr(16,8);
    }else{
        operand[i] = "";
    }
    deleteMark(lable[i]);
    deleteMark(operationCode[i]);
    deleteMark(operand[i]);

    iter = table.find(operationCode[i].c_str());
    if(iter==table.end()){
        errorMessage[i] = operationCode[i];
    }
    printf("%-5d%-8s%-8s%-8s\n",i,lable[i].c_str(),operationCode[i].c_str(),operand[i].c_str());
    i++;
}
-

Step3:計算location和location內的內容，location內的內容還未完整

因為有些變數在後面宣告所以要先跑一遍所有指令

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49


for(j = start;j<=length;j++) {

    if(!errorMessage.empty()){
        printf("Error!!\n");
        for(errorMessageIter = errorMessage.begin();errorMessageIter!=errorMessage.end();errorMessageIter++){
            printf("%-2d %-8s\n",errorMessageIter->first,errorMessageIter->second.c_str());
        }
        return 0;
    }else{
        obj[j] = searchMap(operationCode[j]);
//            不會生成機器碼的走這裡
        if(!table[operationCode[j].c_str()].first.compare("NULL")){//actual location
            if(!operationCode[j].compare("RESW")){
                //RESW表示我們要定義一個字（word）型數據，並分配儲存空間。
                addition =hexadecimalConvertDecimal(location[j]) + atoi(operand[j].c_str())*3;
                location[j+1] = decimalConvertHexadecimal(addition);
            //RESB 表示我們要定義一個位元組（byte）型數據，並分配儲存空間。
            }else if(!operationCode[j].compare("RESB")){
                addition =hexadecimalConvertDecimal(location[j]) + atoi(operand[j].c_str());
                location[j+1] = decimalConvertHexadecimal(addition);
            }else{
                location[j+1] = location[j];
            }
        }else{
//                operationCode[j]等於"BYTE"，則compare函數將傳回值0
            if(!operationCode[j].compare("BYTE")){
                //字元型數據
                if(operand[j][0]=='C'){
                    //減三個字元，像是C''
                    addition = hexadecimalConvertDecimal(location[j]) + (operand[j].length()-3);
                    location[j+1] = decimalConvertHexadecimal(addition);
                }else{
                    //表示16進制
                    addition = hexadecimalConvertDecimal(location[j]) + (operand[j].length()-3)/2;
                    location[j+1] = decimalConvertHexadecimal(addition);
                }
            }else{
                addition = hexadecimalConvertDecimal(location[j]) + table[operationCode[j].c_str()].second;
                location[j+1] = decimalConvertHexadecimal(addition);
            }
        }
        //沒有Label的加入table
        if(!lable[j].empty()){
            symbolTable[lable[j].c_str()] = make_pair(j,location[j].c_str());
        }
        printf("%-2d%-8s%-10s%-8s%-8s\n",j,operationCode[j].c_str(),operand[j].c_str(),obj[j].c_str(),location[j].c_str());
    }
}
-

Step4:補充完location內的內容，產生S、Ｔ、E卡內容

S卡（Start Card）：
- 用途：S卡用於指定程式的起始位址。
- 格式：S卡的格式通常為 S,起始位址。
- 範例：S,0040 表示程式從位址 0040 開始執行。
T卡（Text Card）：
- 用途：T卡用於包含程式的目標代碼指令或資料。
- 格式：T卡的格式通常包括起始位址、長度和目標碼欄位。
- 範例：T,0040,0014,2F4D2F4F2F54… 表示從位址 0040 開始的程式碼，長度為 0014 位元組，包含一系列目標程式碼。
E卡（End Card）：
- 用途：E卡用於指定程式的終止位址，即程式的結束。
- 格式：E卡的格式通常為 E,終止位址。
- 範例：E,007C 表示程式在位址 007C 結束執行。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89


for(j = start;j<=length;j++) {
    if(!errorMessage.empty()){
        return 0;
    }else{
        // 用於產生程式的起始卡（Start Card）
        if(!operationCode[j].compare("START")){
            Scard.append("S,");
            Scard.append(operationCode[j].c_str());
            Scard.append(",");
            Scard.append(lable[j].c_str());
            Scard.append(",");
            int a = hexadecimalConvertDecimal(location[length].c_str());
            int b = hexadecimalConvertDecimal(location[j].c_str());
            Scard.append(decimalConvertHexadecimal(a-b));
//                cout<<Scard<<endl;
        }
        // 用於產生程式的結束卡（End Card）
        if(!operationCode[j].compare("END")){
            Ecard.append("E,");
            Ecard = Ecard + symbolTable[operand[j].c_str()].second;
//                cout<<Ecard<<endl;
        }

        // 不在table的operationCode沒有機器碼
        if(!table[operationCode[j].c_str()].first.compare("NULL")){
            obj[j] = "";

        //若 symbolTable.find(operand[j].c_str()) 找到了匹配的键，則回傳true
        }else if(symbolTable.find(operand[j].c_str()) != symbolTable.end()){
            obj[j].append(symbolTable[operand[j].c_str()].second,0,4);
//                printf("%-8s %-8s\n",lable[j].c_str(),obj[j].c_str());
        //算位元編碼
        }else if(!operationCode[j].compare("BYTE")){
            obj[j] = "";
            if(operand[j][0]=='C'){
                for(int i=2;i<operand[j].length()-1;i++){
                    int oper = operand[j][i];
                    str = decimalConvertHexadecimal(oper);
                    while(str[0]=='0'){
                        str.erase(0,1);
                    }
                    obj[j] = obj[j]+str;
                }
            }else{
                obj[j] = obj[j].append(operand[j],2,operand[j].length()-3);
            }
        //RSUB：這是一個彙編指令，表示“Return from SUBroutine”，意思是從子程式返回。
        }else if(!operand[j].compare("RSUB")){
            //如果是其中之一，表示找到了跳躍或比較的指令。
            for(i=j;;i--){
                if(operationCode[i].compare("JSUB") == 0 || operationCode[i].compare("J")==0 || operationCode[i].compare("COMP")==0){
                    break;
                }
            }
            obj[j].append(location[i].c_str(),0,4);
        }else if(operand[j].find(",X")!=-1){
            int xPosition = operand[j].find(",X");
            temp = operand[j].substr(0,xPosition);
            printf("%s\n",temp.c_str());
            obj[j].append(symbolTable[temp].second,0,4);
            //它的目的是將字串 obj[j] 中的某個字元位置的十六進位值加上 8。*這裡不太確定
            obj[j] = covertHexadecimal(obj[j],8,2);
        }else{
            obj[j].append(location[j].c_str(),0,4);
        }
//           ----------------------------------------
        objLength+=obj[j].length();
        //T卡是一種用於表示程式目標程式碼的文字格式，通常由位址、指令或資料以及其他相關資訊組成。
        if(obj[j].length() == 0){//creat Tcard
            if(objLength>0){
                Tcard[k] = creatTcard(objLength,j-1,obj,location,start++);
                start = j+1;
                k++;
                objLength=0;
            }else{
                start++;
                continue;
            }
        }else if(objLength>=30 || obj[j].length()!=6){
            Tcard[k] = creatTcard(objLength,j,obj,location,start);
//                printf("Tcard %d:%s\n",k,Tcard[k].c_str());
            start = j+1;
            k++;
            objLength=0;
        }
    }
//        printf("%-2d%-8s%-10s%-8s%-8s\n",j,operationCode[j].c_str(),operand[j].c_str(),obj[j].c_str(),location[j].c_str());
}
-

副程式

searchMarker

搜尋空白字元，並回傳該字元出現的第一個位置
以position作為切割點切割a並往前搜尋空白字元位置回傳

1
2
3
4
5
6
7
8
9


    int searchMarker(string a,int position){
        if(a.find(' ',position)!=-1){
            return a.find(' ',position);
        }else{
            flag = 1;
            return a.length();
        }
    }
-

deleteMark

刪除多餘的字元

1
2
3
4


    void deleteMark(string &str){
        str.erase(std::remove(str.begin(), str.end(), ' '), str.end());
        str.erase(std::remove(str.begin(), str.end(), '\r'), str.end());
    }

searchMap

搜隊table中對應的編碼

 1
 2
 3
 4
 5
 6
 7
 8
 9
10


    string searchMap(string a){
        for(iter=table.begin();iter!= table.end();iter++){
            //cout<<iter->first<<iter->second<<endl;
            if(strcompare(a,iter->first)==1){
                return iter->second.first;
            }
        }
        return "null";
    }
-

covertHexadecimal

將一個十六進位數字字串進行加法運算

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26


string covertHexadecimal(string a,int addition,int position){
    int number;
    //printf("a[position]:%d\n",a[position]);
    if(a[position]>64){
        number = a[position]-55;
    }else{
        number = a[position]-48;
    }
    number+=addition;
    //printf("number:%d\n",number);
    if(number<0){
        a = covertHexadecimal(a,-1,position-1);
        a = covertHexadecimal(a,addition+16,position);
    }else if(number<10 && number>=0){
        a[position] = number+48;
    }else if(number>9&&number<16){
        a[position] = number+55;
    }else{
        int carry = number/16;
        number = number%16;
        a = covertHexadecimal(a,carry,position-1);
        a[position] = number+48;
    }
    return a;
}
-

AssembleXE

主程式

Github

Step1:製作編碼對應表

掃第一遍計算location

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100


for line in file.readlines():
    data.append(Row("0","","","","",""))
    if(line[0]=="."):
        continue
    data[i].label = line[0:7].replace(" ","").replace("\n","")
    data[i].code = line[7:15].replace(" ","").replace("\n","")
    data[i].value = line[15:35].replace(" ","").replace("\n","")
    #------------------------------------------------------------------------------------------------------
    #如果遇到要換區塊換區塊
    flag,BLOCK = data[i].decideCode(BLOCK,data[i-1])
    #------------------------------------------------------------------------------------------------------
    #LITTAB是一個用於儲存文字文字表（Literal Table）的資料結構或字典。 文字文字表通常用於儲存程式中的文字常數，並為它們指派一個唯一的識別碼。
    #計算字元or數值的ASCII
    if(data[i].value!="" and str(data[i].value)[0] == '='):
        if (data[i].value[1]=='C'):
            temp = binascii.b2a_hex(str(data[i].value[3:len(data[i].value)-1]).encode('utf-8'))
            a = len(data[i].value)-4
        else:
            temp = str(data[i].value[3:len(data[i].value)-1])
            a = (len(data[i].value)-4)/2

        LITTAB[str(LITTAB_number)] = [str(data[i].value[1:]),temp,a,data[i].loc]
        # print(LITTAB)
        LITTAB_number = LITTAB_number + 1
    #------------------------------------------------------------------------------------------------------
    # 若不為虛擬指令執行這裡，現在位置+上指令容量
    if(data[i].code != "END" and data[i].code != "ORG" and data[i].code != "LTORG" and data[i].code != "BASE"):
        # "+" 開頭，表示這是擴充格式的指令。
        # flag為本行指令location
        if(data[i].code[0] == "+"):
            # data[i].code)[1::]為去除+好的code
            data[i+1].loc = '{0:x}'.format(int(str(flag),16) + int(1) + int(add(data[i].code[1::],data[i].value,codeDict[str(data[i].code)[1::]][1])))
        else:
            if(data[i].code == "USE"):
                data[i].loc = "NULL"
                data[i].block = "NULL"
#             print(str(flag) + "+" + str(add(data[i].code,data[i].value,codeDict[str(data[i].code)][1])))
            data[i+1].loc = '{0:x}'.format(int(str(flag),16) + int(add(data[i].code,data[i].value,codeDict[str(data[i].code)][1])))
#     ------------------------------------------------------------------------------------------------------
    # BASE 指令的作用是告訴組譯器或組譯器，在後續的指令中，使用 operand 指定的位址作為基底位址來計算相對位址。 這樣可以減少在程式中手動計算相對位址的複雜性。
    elif(data[i].code == "BASE"):
        BASETABLE[str(i)] = [BLOCK,data[i].loc,data[i].value]
        data[i+1].loc = data[i].loc
        data[i+1].block = data[i].block
    elif(data[i].code =="ORG"):
        # 那麼意味著 ORG 指令是無操作的，它只是用來標記當前位置。 在這種情況下，data[i+1] 的 loc 和 block 屬性被設定為先前儲存的 org 物件的 loc 和 block 屬性的值，以恢復先前的位置。
        if(data[i].value == "*"):
            data[i+1].loc = org.loc
            data[i+1].block = org.block
        # 則表示 ORG 指令要求程式跳到一個新的位址。 decideOperation 函數可能被用來計算新位址的值
        else:
            value,decideRelative = decideOperation(data[i].value)
            data[i+1].loc = '{0:x}'.format(int(value))
            data[i+1].block = BLOCK
            org.loc = data[i].loc
            org.block = data[i].block
        data[i].loc = "NULL"
        data[i].block = "NULL"
    #------------------------------------------------------------------------------------------------------
    elif(data[i].code == "LTORG" or data[i].code == "END"):
        if(data[i].code =="LTORG"):
            data[i+1].loc = data[i].loc
        # 程式結束後新增宣告
        for j,k in enumerate(LITTAB):
            i = i + 1
            data[i].label = "*"
            data[i].block = data[i-1].block
            data[i].code = "*"
            data[i].value = "=" + str(LITTAB[str(k)][0])
            data[i+1].loc = '{0:x}'.format(int(str(data[i].loc),16) + int(LITTAB[str(k)][2]))
            SYMBOLTABLE[data[i].value] = [i,data[i].block,data[i].loc]
#             print('%-2s %-4s %-8s %-8s %-8s %-15s %-8s' % (i,str(data[i].loc).zfill(4),data[i].block,data[i].label,data[i].code,data[i].value,data[i].obj))
        LITTAB = {}
    else:
        print("talk")
    #------------------------------------------------------------------------------------------------------
    #紀錄Label
    if(data[i].label != ""):
        if(data[i].code == "EQU" and data[i].value != "*"):
            value,decideRelative = decideOperation(data[i].value)
            if(decideRelative%2==0):
                data[i].block = "NULL"
            EQUTABLE[data[i].label] = [i,BLOCK,value]
            SYMBOLTABLE[data[i].label] = [i,BLOCK,value]
#             print(EQUTABLE)
        else:
            SYMBOLTABLE[data[i].label] = [i,BLOCK,data[i].loc]
    #------------------------------------------------------------------------------------------------------
#     print('%-2s %-4s %-8s %-8s %-8s %-15s %-8s' % (i,str(data[i].loc).zfill(4),data[i].block,data[i].label,data[i].code,data[i].value,data[i].obj))
    i = i + 1
length = i
ProgramBlockTable = {"default":[0,"0",ProgramEnd[0]],
                    "CDATA":[1,ProgramEnd[0],ProgramEnd[1]],
                    "CBLKS":[2,'{0:x}'.format((int(str(ProgramEnd[0]),16) + int(str(ProgramEnd[1]),16))),ProgramEnd[2]]}
#--------------------------------------------------------------------------------------------------------------------------

for i,k in enumerate(SYMBOLTABLE):
    if(k in EQUTABLE):
        SYMBOLTABLE[k][1] = 0
# --------------------------------------------------------------------------------------------------------------

掃第二遍計算obj，並建立卡片

H卡（Header Card）：H卡是目標程式檔案的頭卡，用於提供有關程式的基本信息，如程式名稱、程式起始位址、程式長度等。在給定的程式碼中，H = "" 似乎表示沒有H卡資訊。
T卡（Text Card）：T卡包含了程式的機器指令以及它們在記憶體中的位址資訊。 T卡由一個起始位址和一系列的機器指令組成，每個指令通常以一個十六進位數表示。在給定的程式碼中，T = [] 可能表示目標程式不包含T卡資訊或T卡為空。
M卡（Modification Card）：M卡用於指示需要在程式載入時對記憶體中的資料進行修改的資訊。這可以用來支援程式的重定位。在給定的程式碼中，M = [] 可能表示沒有M卡資訊或M卡為空。
E卡（End Card）：E卡用來標示目標程式的結束，包含程式的入口點位址。在給定的代碼中，E = [] 可能表示沒有E卡資訊或E卡為空。

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180


H = ""
T = []
M = []
E = []
number = 0
count = 0
TcardNumber = 0
for i,k in enumerate(data):
    Extend  = 0
    #------------------------------------------------------------------------------------------------------
    if(i == length):
        break
    if(k.code == "START"):
        H = "H,"+ str(k.label) +","+ str(k.loc).zfill(4) + ","+str('{0:x}'.format(int(str(ProgramEnd[0]),16) + int(str(ProgramEnd[1]),16) + int(str(ProgramEnd[1]),16)))
        k.obj = "NULL"
#         print('%-2s %-4s %-8s %-8s %-8s %-8s %-15s %-8s' % (i,str(k.loc).zfill(4),k.block,correctPosition(k.block,k.loc).zfill(4),k.label,k.code,k.value,k.obj))
        continue
    elif(k.code == "END"):
        E = "E," + str(k.value)
    elif(k.code == "USE" or k.code == "RESW" or k.code == "EQU" or k.code == "LTORG" or k.code == "ORG" or k.code == "BASE"):
        k.obj = "NULL"
    elif(k.code == "COMPR"):
        behind = str(codeDict[str(k.code)][0])
        k.obj = behind + str(LEETTERTABLE[str(k.value[0])]) + str(LEETTERTABLE[str(k.value[len(k.value)-1])])
    elif(k.code == "CLEAR"):
        behind = str(codeDict[str(k.code)][0])
        k.obj = behind + str(LEETTERTABLE[str(k.value)]) + "0"
    elif(k.code == "RSUB"):
        k.obj = str(codeDict[str(k.code)][0]) + "0000"
    elif(k.value == ""):
        k.obj = "000000"
    elif(k.code == "RESB"):
        k.obj = "NULL"
    elif(k.code == "BYTE"):
        if(k.value[0] == 'C'):
            k.obj = binascii.b2a_hex(str(data[i].value[3:len(data[i].value)-1]).encode('utf-8'))
        else:
            k.obj = k.value[2:len(k.value)-1]
    elif(k.value[0] == "#" or k.value[0] == "@" or k.code[0] == "+" or k.value in SYMBOLTABLE or k.value[0:len(k.value)-2] in SYMBOLTABLE):
        #如果value是在SYMBOLTABLE裡
        if(k.value in SYMBOLTABLE or k.value[1::] in SYMBOLTABLE or k.value[0:len(k.value)-2] in SYMBOLTABLE):
    #------------------------------------------------------------------------------------------------------
            if(k.value[1::] in SYMBOLTABLE):
                NOW = correctPosition(SYMBOLTABLE[k.value[1::]][1],SYMBOLTABLE[k.value[1::]][2])
                Mcard = "M," + str(k.loc).zfill(6) +  ",+" + str(k.value[1::])
            elif(k.value[0:len(k.value)-2] in SYMBOLTABLE):
                NOW = correctPosition(SYMBOLTABLE[k.value[0:len(k.value)-2]][1],SYMBOLTABLE[k.value[0:len(k.value)-2]][2])
                Mcard = "M," + str(k.loc).zfill(6) + ",+" + str(k.value[0:len(k.value)-2])
            elif(k.value in SYMBOLTABLE):
                NOW = correctPosition(SYMBOLTABLE[k.value][1],SYMBOLTABLE[k.value][2])
                if(k.code != "*"):
                    Mcard = "M," + str(k.loc).zfill(6) + ",+" + str(k.value)
            M.append(Mcard)
            #======================================================================================================
            if(k.code[0] == "+"):#有加號
                behind = str(codeDict[str(k.code[1::])][0]) + "00"
            else:
                behind = str(codeDict[str(k.code)][0])
            #======================================================================================================
            if(data[i].code[0] != "+"):
                PC = '{0:x}'.format((int(str(correctPosition(data[i].block,data[i].loc)),16)) + int(add(data[i].code,data[i].value,codeDict[str(data[i].code)][1])))
            else:#沒有+號後面是label
                PC = '{0:x}'.format((int(str(correctPosition(data[i].block,data[i].loc)),16)) + int(1) + int(add(data[i].code[1::],data[i].value,codeDict[str(data[i].code[1::])][1])))
#             print("behind:" + str(behind))
#             print("Now:" + str(behind))
    #------------------------------------------------------------------------------------------------------
            if(k.code[0] == "+" and k.value[1::] in SYMBOLTABLE):#+號後面是字符直接放
                k.obj = behind +str(correctPosition(SYMBOLTABLE[k.value[1::]][1],SYMBOLTABLE[k.value[1::]][2]))
            elif(k.code[0] == "+" and k.value in SYMBOLTABLE):#+號後面是字符直接放
                k.obj = behind +str(correctPosition(SYMBOLTABLE[k.value][1],SYMBOLTABLE[k.value][2]))
            elif( (int(str(NOW),16)-int(str(PC),16) > 1000 or int(str(NOW),16)-int(str(PC),16) < -1000) and Extend == 0):
                small = i
                flag = 0
                for n,m in enumerate(BASETABLE):
#                     print(closedBasePosition)
                    if(flag==0):
                        closedBasePosition = m
                        flag = 1
                    if(int(closedBasePosition) - i < small):
                        closedBasePosition = m
                if(BASETABLE[str(closedBasePosition)][2] in SYMBOLTABLE):
                    BASE = correctPosition(SYMBOLTABLE[BASETABLE[str(closedBasePosition)][2]][1],SYMBOLTABLE[BASETABLE[str(closedBasePosition)][2]][2])
                else:
                    BASE = BASETABLE[str(closedBasePosition)][2]
                    temp = "BASE"
#                 print(NOW)
#                 print(BASE)
                k.obj = behind + SUB(int(str(NOW),16),int(str(BASE),16),0)
            else:
#                 print(NOW)
#                 print(PC)
                temp = "PC"
                if(k.code[0] == "+"):
                    k.obj = behind + SUB(int(str(NOW),16),int(str(PC),16),1)
                else:
                    k.obj = behind + SUB(int(str(NOW),16),int(str(PC),16),0)
        else:#如果value是數字
            if(k.code[0] == "+"):
                behind = str(codeDict[str(k.code[1::])][0]) + "00"
                k.obj = behind + '{0:x}'.format(int(k.value[1::]))
            else:
                k.obj = str(codeDict[str(k.code)][0]) + str(int(str(k.value[1::]),16)).zfill(4)
#         print(k.obj)
        k = symbol(k,temp)
        k.obj = str(k.obj).zfill(6)
    #------------------------------------------------------------------------------------------------------
    elif(k.value[0] == "="):
        NOW = correctPosition(SYMBOLTABLE[k.value[1:len(k.value)]][1],SYMBOLTABLE[k.value[1:len(k.value)]][2])
        PC = '{0:x}'.format((int(str(correctPosition(data[i].block,data[i].loc)),16)) + int(add(data[i].code[1::],data[i].value,codeDict[str(data[i].code[1::])][1])))
        behind = str(codeDict[str(k.code)][0])
        k.obj = behind + str(SUB(int(str(NOW),16),int(str(PC),16))).zfill(4)
    else:
        behind = str(codeDict[str(k.code)][0])
        if(k.value in LEETTERTABLE):
            k.obj = behind + str(LEETTERTABLE[k.value]).zfill(2)
        else:
            k.obj = behind + "0000"
    #------------------------------------------------------------------------------------------------------
    print('%-2s %-4s %-8s %-8s %-8s %-8s %-15s %-8s' % (i,str.upper(str(k.loc)).zfill(4),k.block,str.upper(str(correctPosition(k.block,k.loc).zfill(4))),k.label,k.code,k.value,str.upper(str(k.obj))))
#     print(ProgramBlockTable)
for i,k in enumerate(data):
    if(k.obj != "NULL"):
        count = count + len(k.obj)
        TcardNumber = TcardNumber + 1
        if(count+len(data[i+1].obj)>30 or data[i+1].obj == "NULL" or data[i+1].code == "END"):
            Tposition = i-TcardNumber+1
#             print("Tposition:" + str(Tposition))
            Tcard = "T," + str(correctPosition(data[Tposition].block,data[Tposition].loc)).zfill(6) + "," + str('{0:x}'.format(int(count)))
            for j in range(i-TcardNumber+1,i+1):
                Tcard =  Tcard +  ","  +str(data[j].obj)
#             print(Tcard)
            T.append(Tcard)
            TcardNumber = 0
            count = 0
    if(k.code == "END"):
        break
if os.path.exists("card.txt"):
    os.remove("card.txt")
a = open("card.txt", 'w')
a.writelines(str(H))
a.writelines("\n")
for i in range(len(T)):
    a.writelines(T[i])
    a.writelines("\n")
a.writelines(E)
a.close()
if os.path.exists("list.txt"):
    os.remove("list.txt")
file_write_obj = open("list.txt", 'w')
for i,k in enumerate(data):
    #index
    file_write_obj.writelines('%-4s' %i)
    #location
    if(k.loc == "NULL"):
        file_write_obj.writelines("%-6s" %(" "))
    else:
        file_write_obj.writelines('%-6s' %str(k.loc).zfill(4))
    #block
    if(k.block == "NULL"):
        file_write_obj.writelines("%-3s" %(" "))
    else:
        file_write_obj.writelines('%-3s' %k.block)
    #correctPosition
    if(k.block == "NULL"):
        file_write_obj.writelines("%-8s" %(" "))
    else:
        file_write_obj.writelines('%-8s' %str.upper(str(correctPosition(k.block,k.loc).zfill(4))))
    #label,code,value
    file_write_obj.writelines('%-8s%-8s%-15s' %(k.label,k.code,str(k.value)))
    #object code
    if(k.obj == "NULL"):
        file_write_obj.writelines("%-8s" %(" "))
    else:
        file_write_obj.writelines('%-8s' %(str.upper(str(k.obj))))
#     print('%-2s %-4s %-8s %-8s %-8s %-8s %-15s %-8s' % (i,str(k.loc).zfill(4),k.block,correctPosition(k.block,k.loc).zfill(4),k.label,k.code,k.value,k.obj))
    file_write_obj.write('\n')
    if(k.code == "END"):
        break
file_write_obj.close()
print("Success")

副程式

宣告Row Class

Row Class 負責儲存每行指令
decideCode:如果遇到要換區塊指令則要換區塊

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27


class Row():
    def __init__(self,loc,block,label,code,value,obj):
        self.loc = loc
        self.block = block
        self.label = label
        self.code = code
        self.value = value
        self.obj = obj

    def decideCode(self,block,previous):#決定program block 的位置和值
        #flag是要記錄上一個的值，如果有use要特別取ProgramEnd的紀錄值
        ProgramEnd[block] = self.loc
        if(self.code =="USE"):
    #         print(str(block) + " " + str(self.code) + " " + str(self.value) + " " + str(ProgramEnd[block]))
            if(self.value == "CDATA"):
                self.block = 1
            elif(self.value == "CBLKS"):
                self.block = 2
            else:
                self.block = 0
            self.loc = ProgramEnd[self.block]
            flag = ProgramEnd[self.block]
        else:
            flag = self.loc
            self.block = block
        return flag,self.block
-
